AIR AGITATION UNIT
TURBINE BLOWER
Water Wash, Oil free clean air for Plating & Anodising operation obtained through rotary water wash pump directly coupled to TEFC motor mounted on base plate with water filled Air Receiver and fittings.
|
Model |
Capacity CFM |
Motor |
||
|
|
|
HP |
RPM |
|
|
KA-MAA 1 |
10 |
1 |
2880 |
|
|
KA-MAA 2 |
20 |
2 |
2880 |
|
|
KA-MAA 3 |
70 |
5 |
1440 |
|
|
KA-MAA 4 |
105 |
7.5 |
1440 |
|
Optional : Air Receivers in hot dip galvanised coating to resist rusting.
1. Air Agitation coil in single or double rows in PVC/PP/Ebonite, Lead, S.S.or Titanium.
2. On-line air moisture and oil filters.

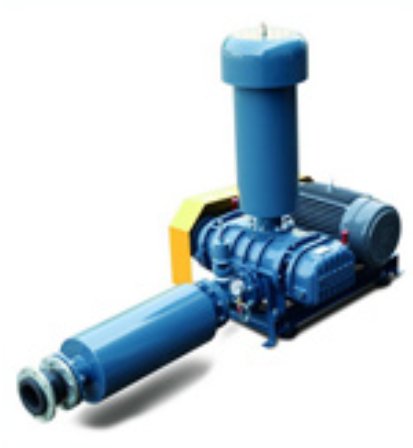

ROOT BLOWERS
ROOT BLOWERS
The Twin lobe Rotary Air Blowers cum Compressors are also meeting the need of 100% oil free air for Electroplating Process. Easy maintenance and operation for constant flow rate powered by 3 HP motor through V-Belt available in 10, 20, 60 and 150 CFM, and working pressure up to 4 p.s.i. Higher ranges for Industrial Application are also available, for applications in:
- Electroplating
- Effluent & Water Treatment plants
- Aquaculture
- Paper
- Cement
- Chemical plants
