CHEMICAL PROCESS CENTRIFUGAL PUMPS
- Corrosion Resistant
- High Performance
- Unique & Simple design Horizontal or Vertical, Single stage, in Metallic and Non-Metallic Body
MONOBLOCK PUMPS (Seal Type):
Mechanical Seal type in fabricated PP, UHMW and SS 316 MOC having a wide ranges from Lab Model of 12 x 12 mm 1 M3/H, 1 M. Head to bulk Industrial design of 100 x 75 mm, 105 M3/H & 70 M. Head and 0.125 to 20 HP motor.

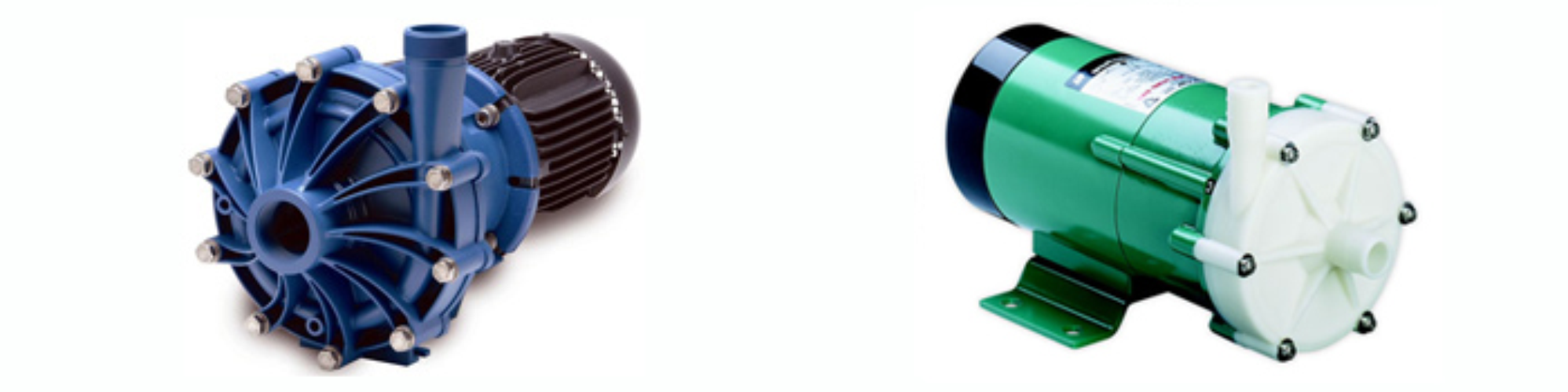

MONOBLOCK PUMPS (Sealless Type) :
Seal less Magnetic drive moulded in Glass Fibre filled PP/Teflon, PVDF body, Non-Metallic or SS 316 MOC having a wide range
HORIZONTAL CENTRIFUGAL PUMPS:
These Pumps of CI, SS-316, P.P., UHMW, material with Mechanical Seal of SS316, Teflon, Graphite or Conventional Gland Packing. Semi open type Impellers, a wide range sizes from 19 to 100 mm, Capacity 3 M3/H to 250 3 M3/H, Head from 1 M to 60 M. Self priming attachment are fitted wherever desired.
VERTICAL GLANDLESS PUMPS:
These pump parts are moulded to shape from polypropylene or UHMW. These are maintenance free pumps to give sturdy performance. No Mechanical Seal or Gland Packing. Supplied in two designs (a) Monoblock Pumps & (b) Bearing Frame Pump with a bearing housing which supports the Pump shaft in two bearings.
PERISTALTIC & BELLOW DOSING PUMPS:
The most suited for dosing of brightners, passing through Silicon, B.P.T., Vitron, Butyl or Neoprene tubing without contamination and contact to the main body, Output 0.3 to 300 ml / min. with variable speed motors also available Bellow Reciprocating pump of similar output.

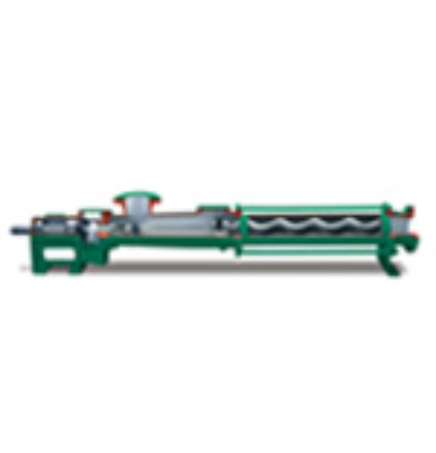

SCREW PUMP (progressing Cavity):
The most recommended for effluent liquid, Max pressure 6 bar, suction obtainable 0.95 bar, Temp. upto 1500C. Viscosity 3 lakhs mPas, solid contents 60%.
