SUBMERSIBLE PLATING BARRELS
For bulk plating of the small articles and samplings the barrels plating has been considered the most economical method because of low labour cost and elimination of racking and rack maintenance. A complete range of manual and automatic plating barrels as small as 5” x 3.5” A/F to as large as 48” x 18” A/F and also custom built.
SUBMERSIBLE PLATING BARRELS
SUBMERSIBLE PLATING BARRELS

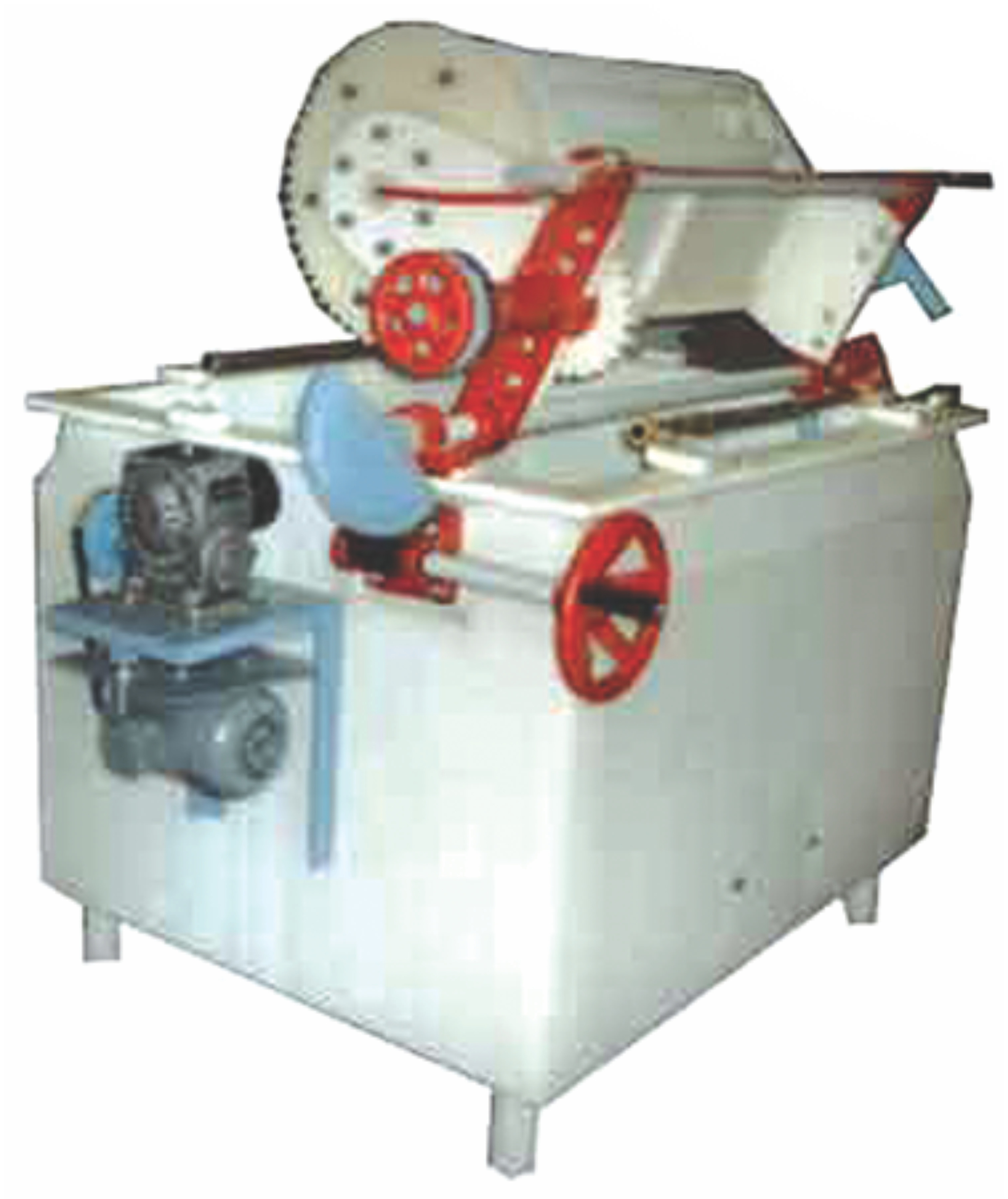

This is fully submerged barrel for the bulk, rapid and efficient handling of small articles. The unit is equipped with Perspex/PP/CPVC barrel powered by three phase motor directly coupled to gear box and suitably lined tank and fittings, PVC coated / sleeved, danglers, hand operated pinion sector mechanism and emptied through hopper into a bucket. Standard sizes.
Miniature Barrels
Miniature Barrels
This fully immersed polypropylene / perspex barrel is suitable for 0.5 to 2 Kg. plating range. The barrel is powered by geared motor, 12 volts D.C. (with power drive) or A.C. geared motor. The tank of PP/PVC / Perspex fitted with Bus-Bars & Danglers. Optional : Heater, Air Agitation, Cathode Movement, Filter, Rectifier etc
Medium BARRELS
Medium BARRELS

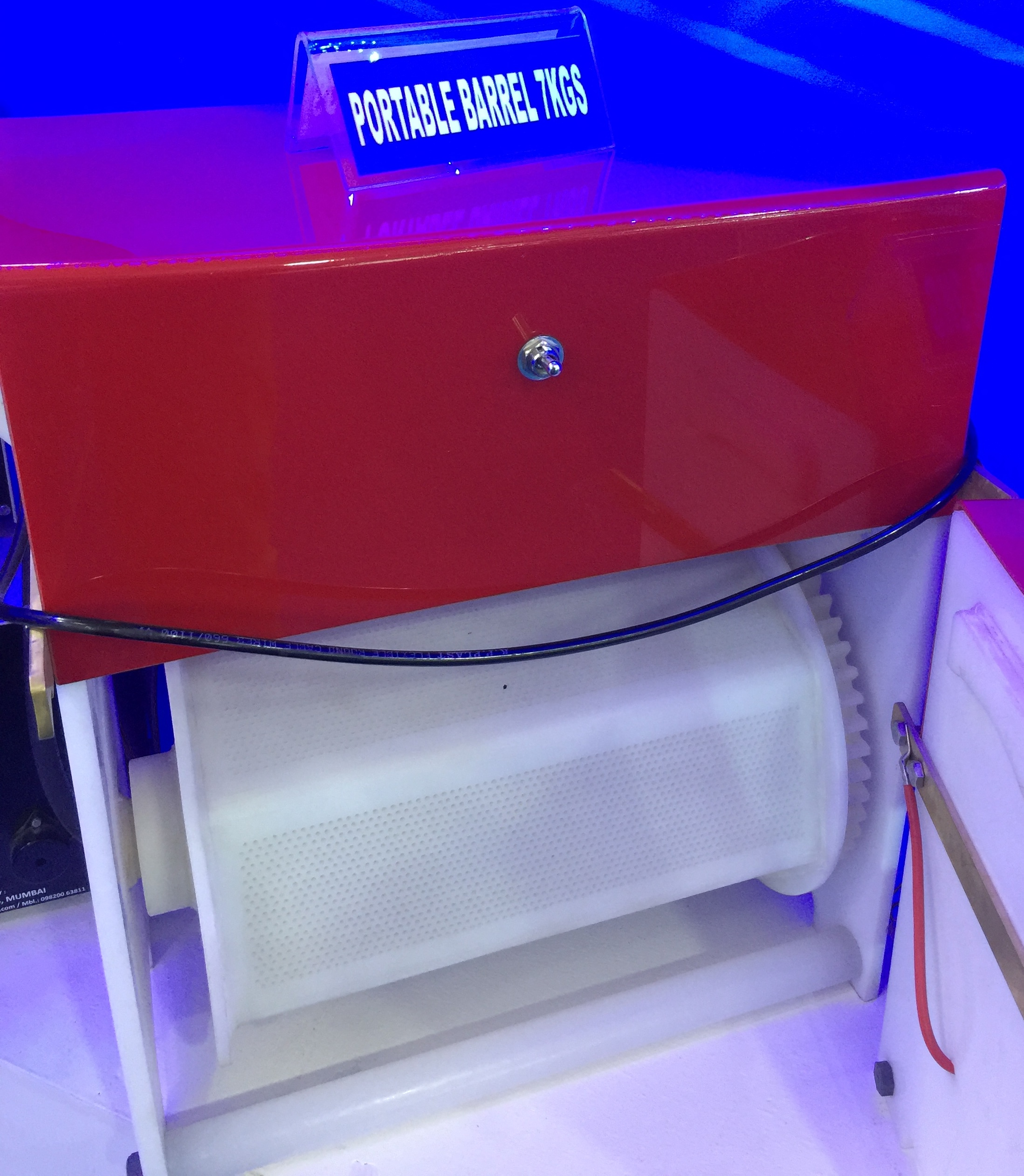

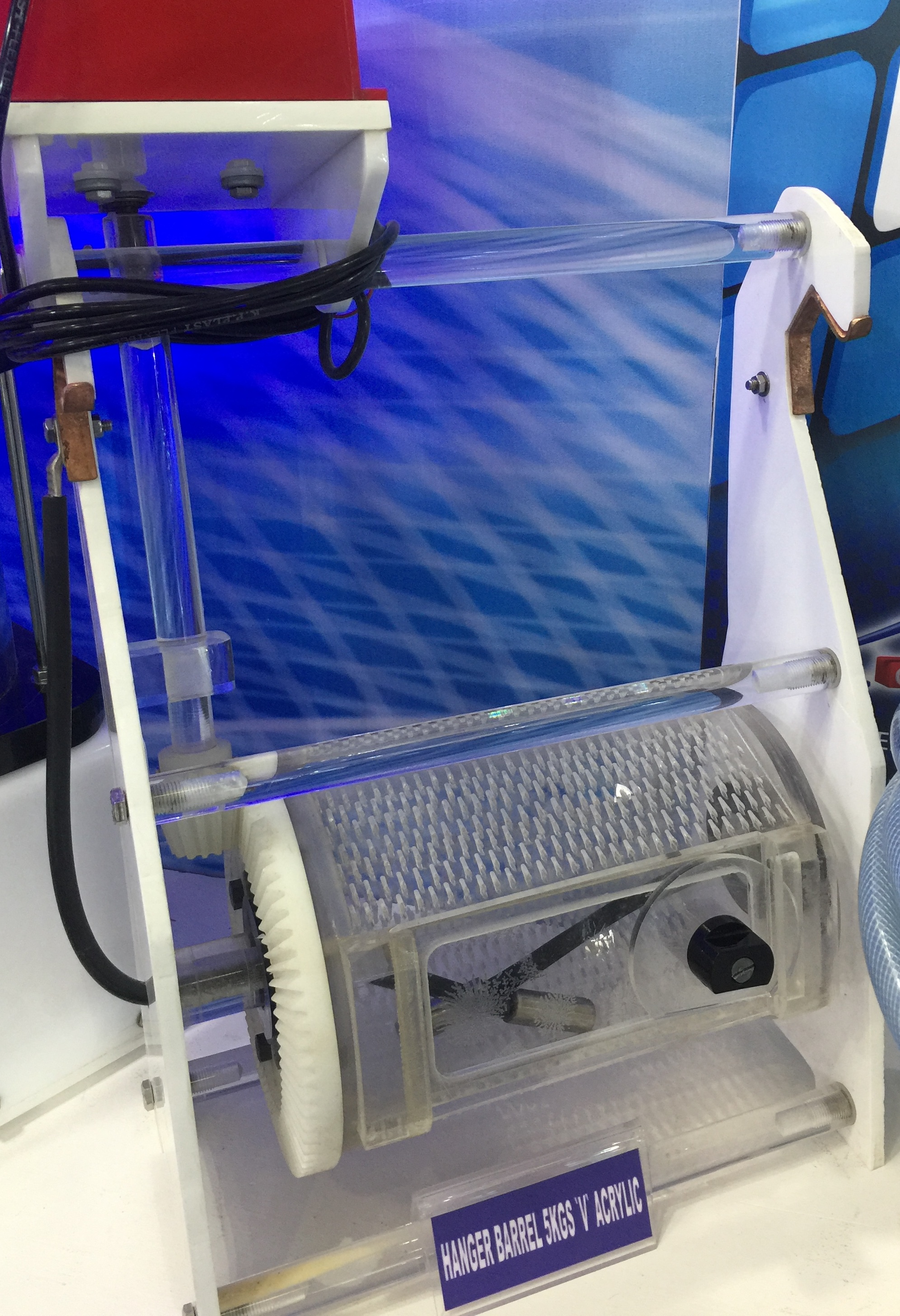

Medium portable barrels are in hexagonal design for two sizes viz: 3 to 5 kgs and 7 to 10 kgs. Octagonal Barrels are in bigger sizes from 15 kgs. onwards made of Acrylic, PP or CPVC, for most applications. Powered by low voltage DC geared motor (supplied with Power Drive) or AC motor single or three phase, geared or gearbox driven through V-belt, operated single (having two or four cathode contacts) or two operators or by hoist/transport mechanism. Mechanical disengaging arrangement for loading and unloading.
STANDARD SIZES
STANDARD SIZES
11” x 7”, 12” x 8”, 18” x 10”, 24” x 10”A/F or bigger sizes. Suitably lined-tank from 2’ x 1.5’ x 1.5’ onwards can also be made for these Barrels with Standard fittings. Also available Plating Barrels for Spokes.
